Nova Tec is the exclusive distributor of pneumatic trenchless equipment manufactured by the Odessa Plant of Construction and Finishing Machines with over 60 years of experience. Our equipment is trusted by customers across Europe and beyond.
Trenchless technologies allow the installation and repair of underground utilities with minimal cost and without damaging road surfaces.
Advantages of trenchless technologies
Precision and process control
Hydroprom machines provide a uniform direction of movement even in difficult soils. This guarantees safe pipe laying without damaging existing communications
Minimal environmental intervention
Work is carried out from the starting and receiving wells without digging the surface. Roads, sidewalks and green areas are not disturbed, which is especially important in urban areas.
High economic efficiency
The trenchless method reduces time and costs by 2–3 times compared to traditional work. The absence of excavation and resurfacing ensures a quick return on investment.
Versatile application
Our trenchless equipment provides a reliable and cost-effective solution for the installation of water, sewer, gas, telecommunications, and power networks, as well as for a wide range of utility installation and rehabilitation projects, including road and railway crossings.
Selected models are also suitable for vertical applications, including bore formation and pile installation.
More details
Purpose of equipment
Nova Tec pneumatic trenchless machines are designed for:
Forming through, blind, horizontal, inclined, and vertical bores with diameters from 55 to 155 mm;
Forming expanded bores up to 300 mm in diameter (using an expander/reamer) with simultaneous pulling of polyethylene (PE) pipes ranging from 63 to 250 mm;
Pipe ramming of steel pipes (open or closed-ended) with diameters from 63 to 1420 mm into the soil or into pre-bored holes;
Construction and installation of asbestos-cement, concrete, and reinforced concrete pipelines as well as pile construction;
Loosening compacted materials and deep compaction of loose/sedimentary soils;
Extraction and pipe removal of old steel pipes with internal diameters from 40 to 120 mm;
Pipe pulling for the replacement and trenchless rehabilitation of underground utilities.

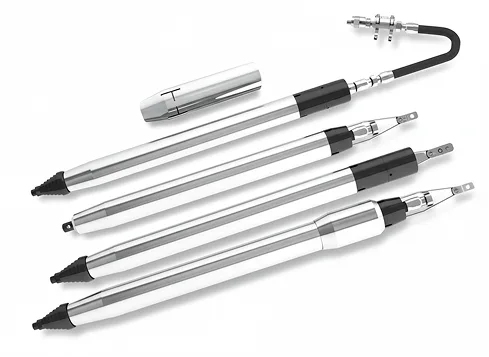

Pneumatic piercing tools

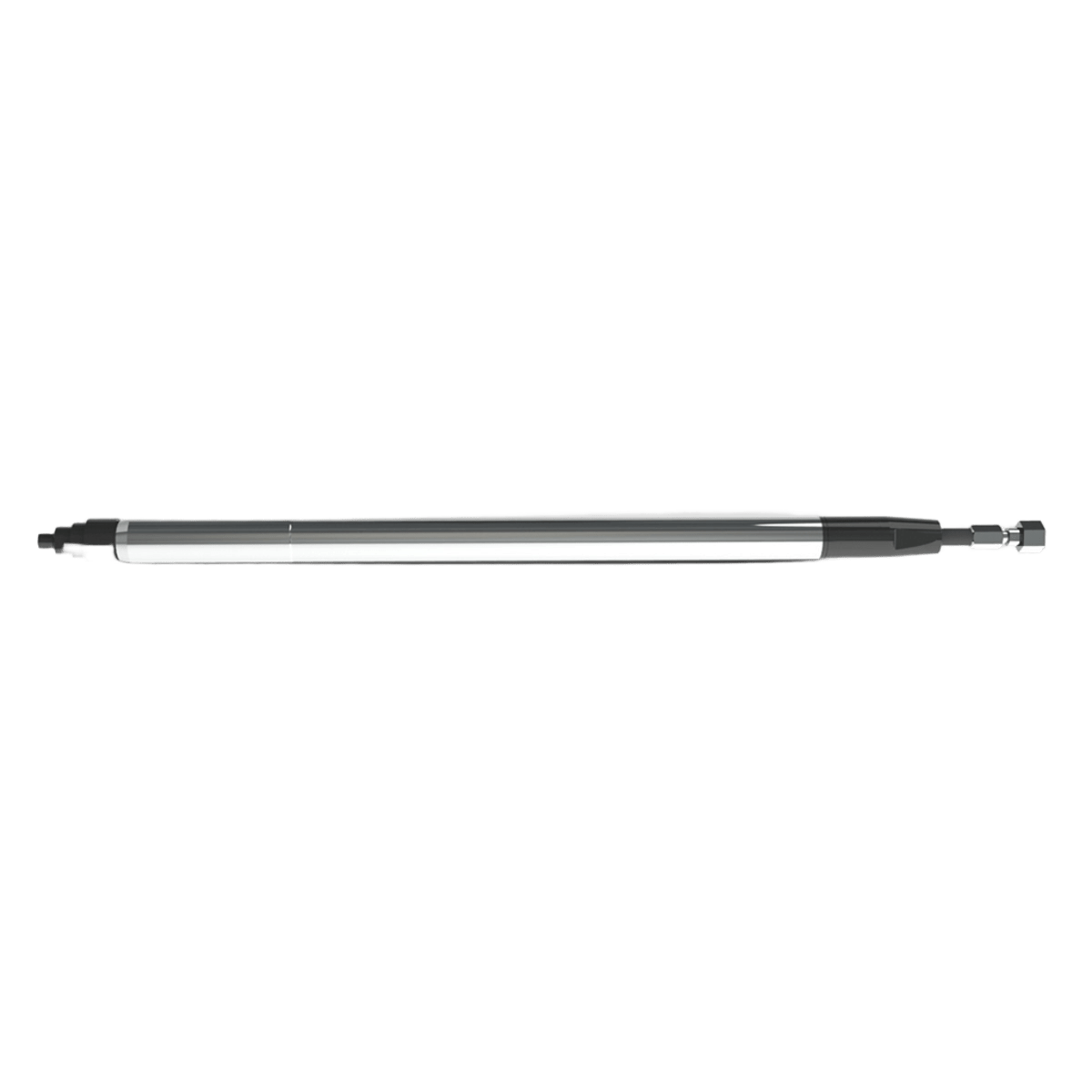

ІП 4610
Design features
Reversible mechanism for changing the direction of movement (forward/backward);
Increased penetration accuracy due to directional start;
Operates from a compressor or mobile station;
Optimum for urban conditions – without opening the road surface.
Component:
Component:
Impact assembly
Hose Ø 16 mm (40 m)
Tools and accessories
Spare parts kit
ІП 4610
Description and capabilities:
The machine is designed for drilling through and blind horizontal, inclined and vertical wells Ø 56 mm in dense soils. It is also used for forming micropiles, compacting sedimentary soils, and loosening bulk materials.
Possibility of simultaneously threading polyethylene pipes Ø 70 mm;
Resistant to abrasive soils;
Easy maintenance.
Component:
Impact assembly
Expander Ø 180 mm
Stepped nozzle
Hose (40 m)
Tools
Spare parts

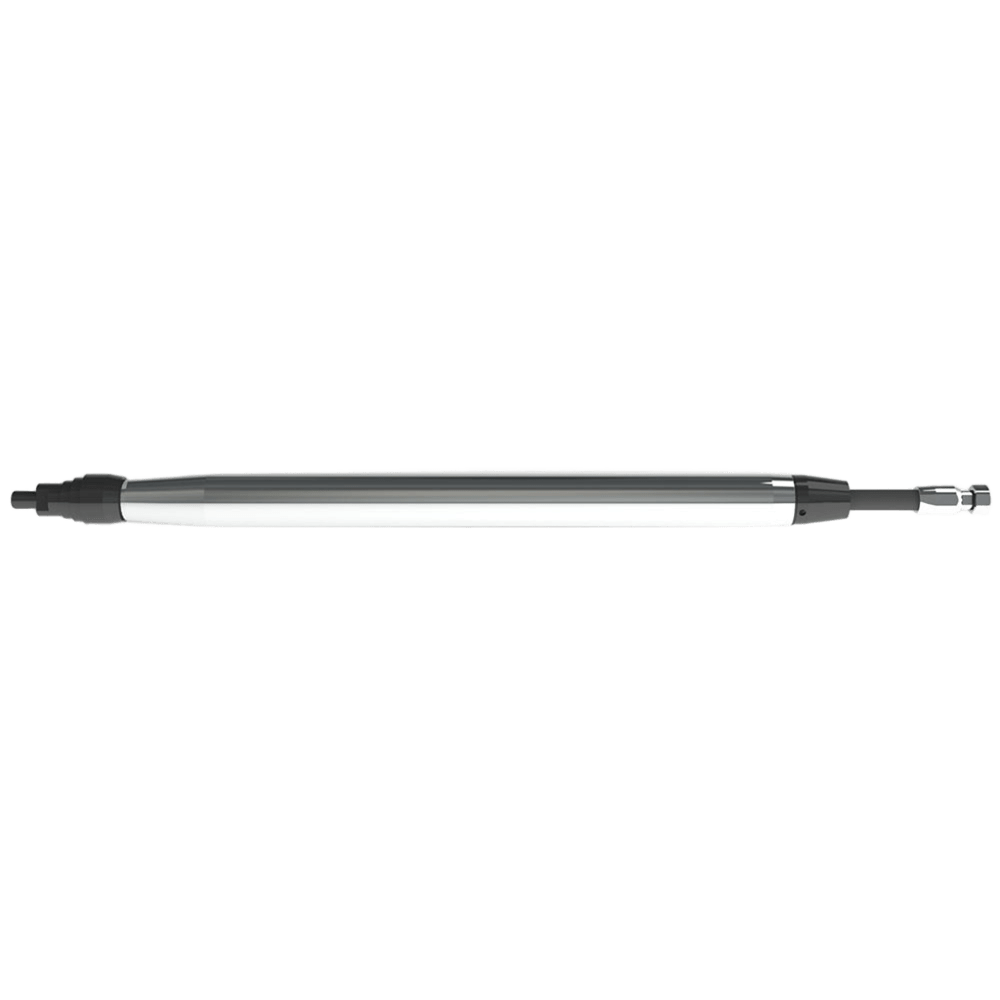

ІП 4605А
Description and capabilities:
Reversible pneumatic drill for drilling horizontal and inclined wells Ø 95 mm (up to Ø 180 mm with an expander). Used for trenchless laying of communications.
Reversible pneumatic drill for drilling holes Ø 130–200 mm and driving steel pipes Ø 100–120 mm. Suitable for replacing old pipes, compacting soils, and forming piles.
Do you have any questions about our products? Need advice? We are always ready to help you make the right choice. Leave a request, and our specialists will contact you as soon as possible to provide all the necessary information.
We will contact you within 24 hours of receiving your letter during business hours
